BODET Harmonys Multisite integration for Genetec Security Center

The ADDONXPERT BODET PPMS plugin brings BODET's Harmonys Multisite software into Genetec Security Center. Safety plans - a PPMS (Plan Particulier de Mise en Sûreté), POMSE, PSE and the like - are what schools, universities, healthcare facilities, public buildings and sensitive sites rely on to protect people when a major event occurs. With this plugin, your operators pilot the whole plan from the single interface they already use every day - alongside their cameras, doors and access control - over the Harmonys Multisite API and the SNMP trap (MIB) protocol.

• Configurable security alerts (PPMS, POMSE, PSE, etc.): Harmonys does not impose a fixed set - each establishment defines its own list of up to 10 security alerts (for example lockdown, evacuation, intrusion, attack, major or chemical risk, end of alert). The plugin carries every one of them into Security Center.

• Two-way communication: alerts raised on site are received as Security Center custom events, and an operator can trigger any security alert remotely from Security Desk towards the Harmonys Multisite software.

• Button-box identification (SNMP trap / MIB): each physical box is identified by its name, IP address and site, so your team knows exactly which box was activated - not just the type of alert.

• Centralized, correlated supervision: drive the whole safety plan from the single Security Center interface, alongside video and access control, with real-time monitoring and event-to-action automations.

• Local or Federation deployment: a single Bodet site (ADX-BODET-BASE), or several sites consolidated on one central Security Center through a REST API over IIS (ADX-BODET-FEDERATION).

Overview

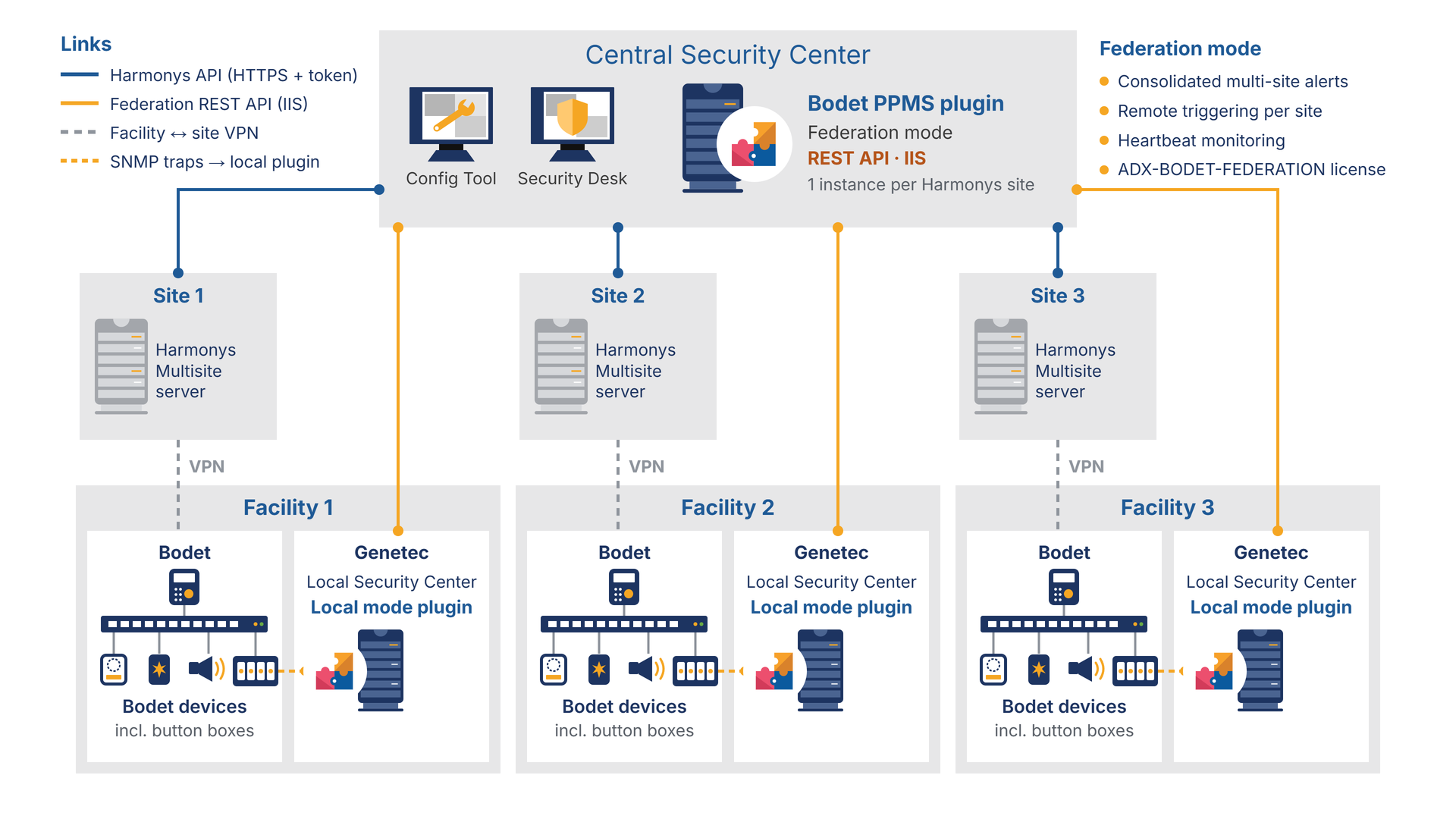

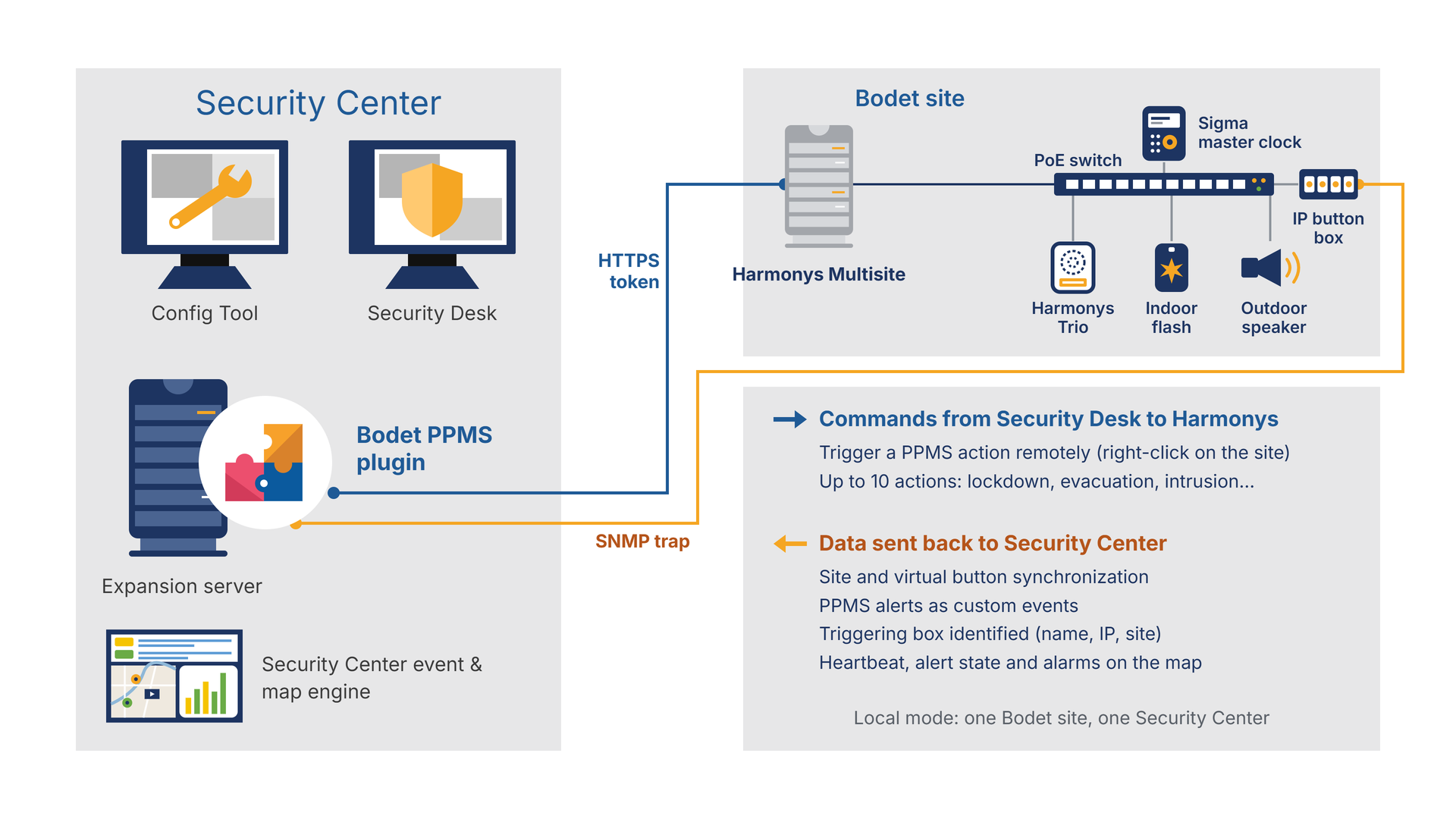

Technical diagram

Whether you secure a single establishment or an entire estate, BODET PPMS fits your topology - a single site in local mode, or several sites consolidated in federation mode:

Usage

Plugin configuration

Everything is configured from Config Tool, in the plugin's own tabs:

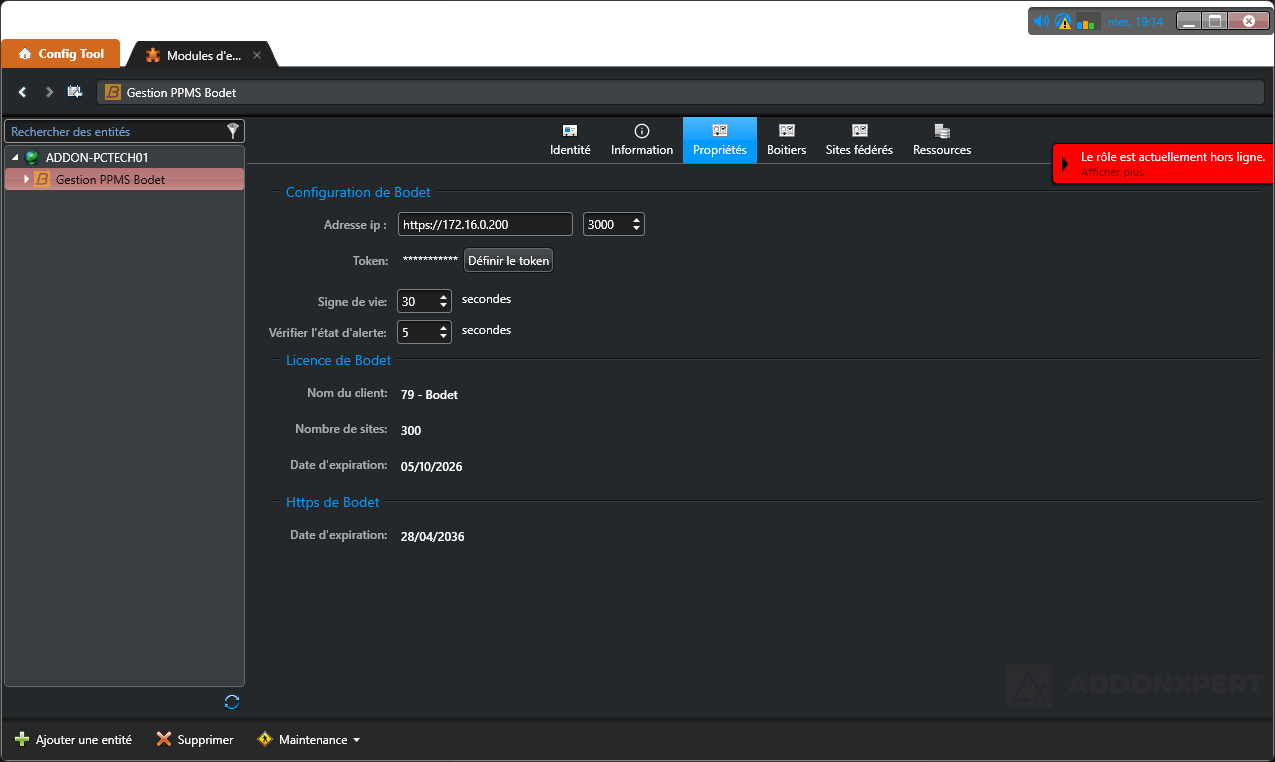

• Connection to the Harmonys Multisite API - URL, token, heartbeat and alert-state polling

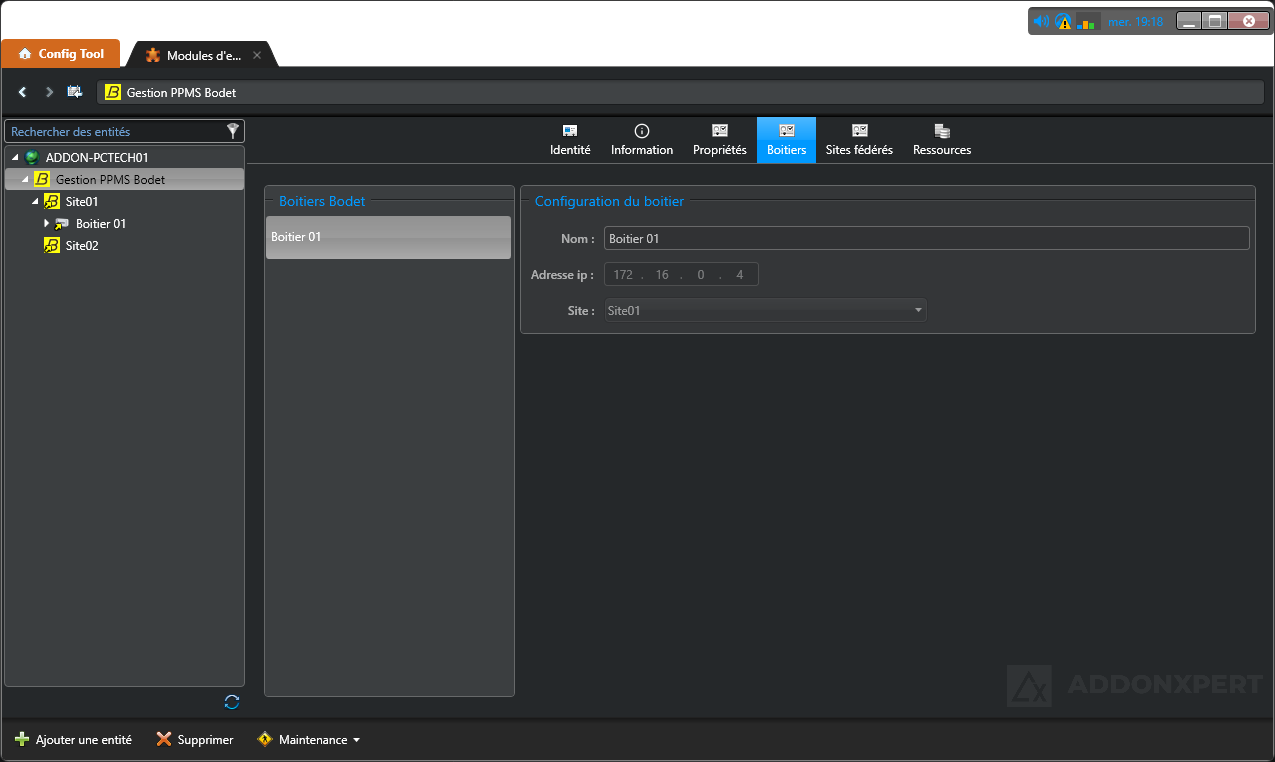

• Button boxes - each box declared as a native Genetec custom entity (name, IP address, Bodet site) and placeable on maps

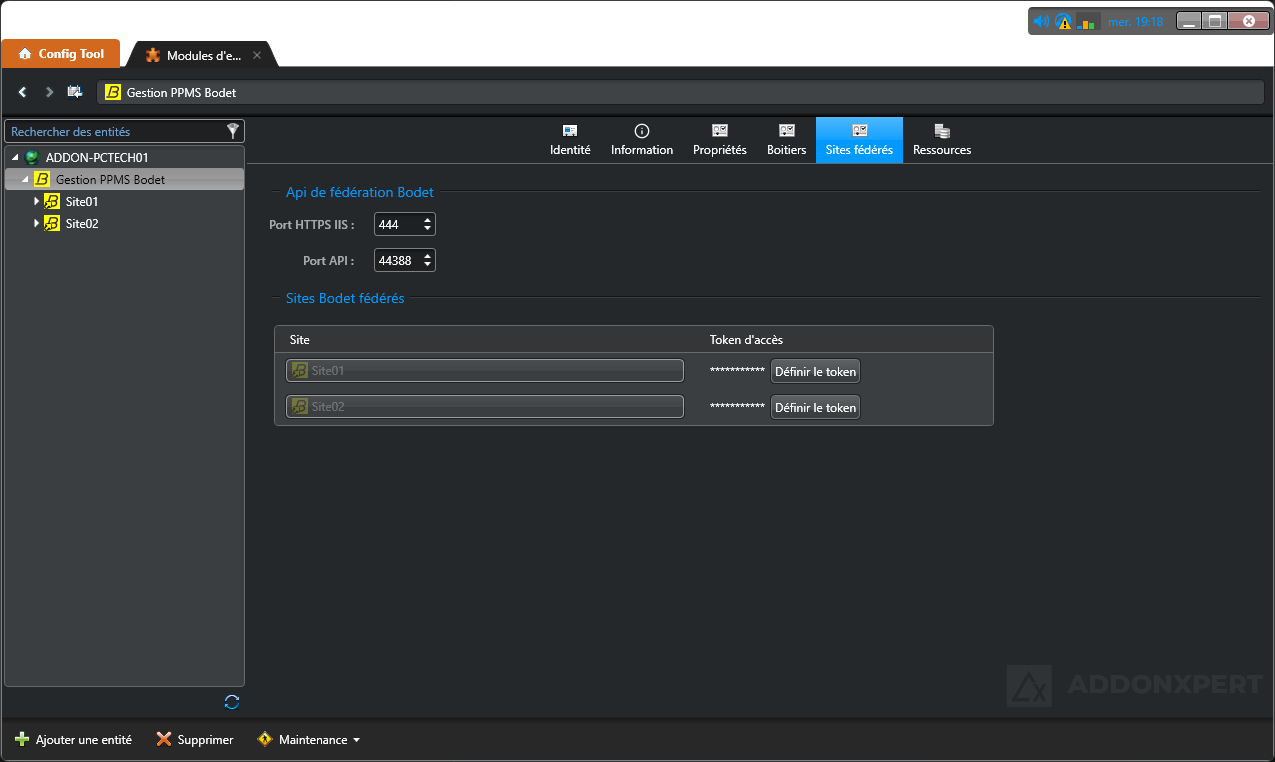

• Federation mode - REST and IIS HTTPS ports and site/token mappings (with the ADX-BODET-FEDERATION license)
• Built-in diagnostics - connection, Bodet license and HTTPS certificate state, checked automatically

Operational use

However the alerts are configured, the operator experience stays unified in the Security Desk consoles your teams already know:

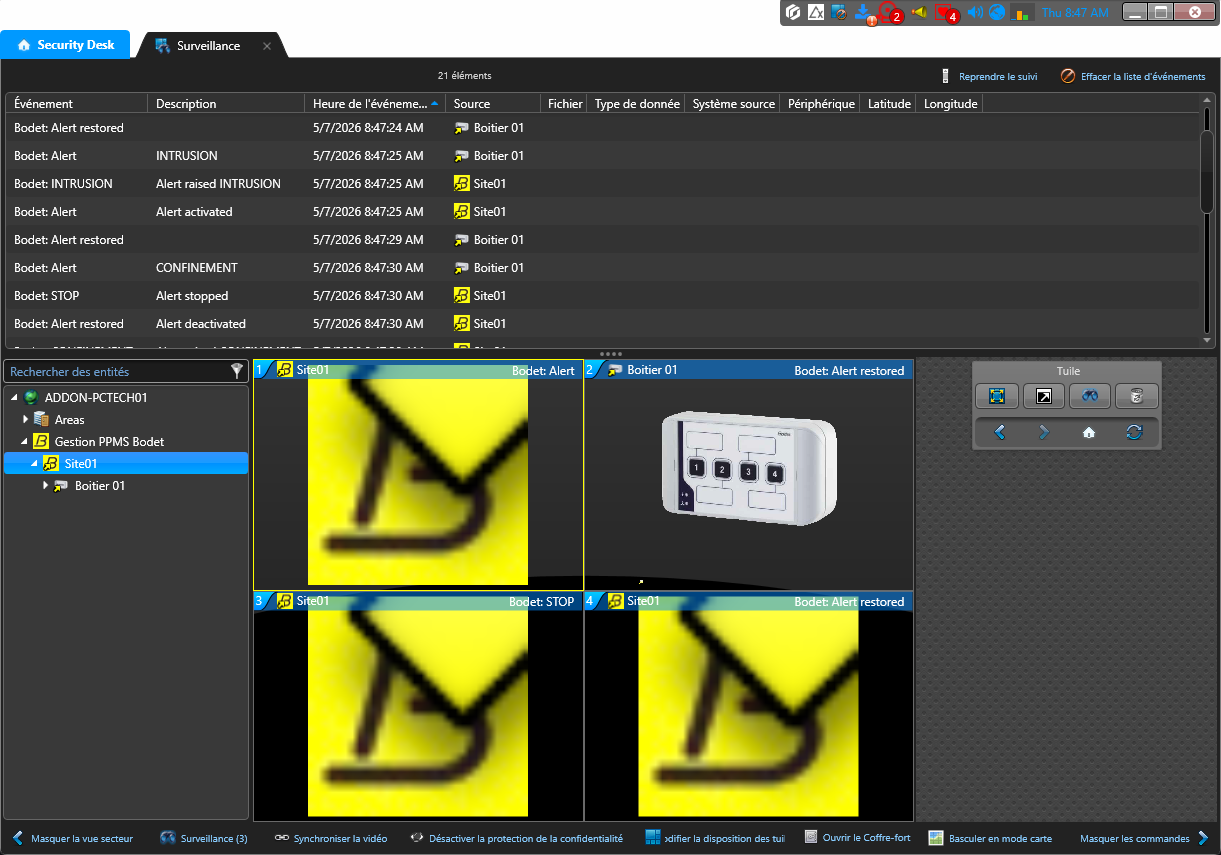

• Receive security alerts as Security Center custom events, ready for event-to-action automations

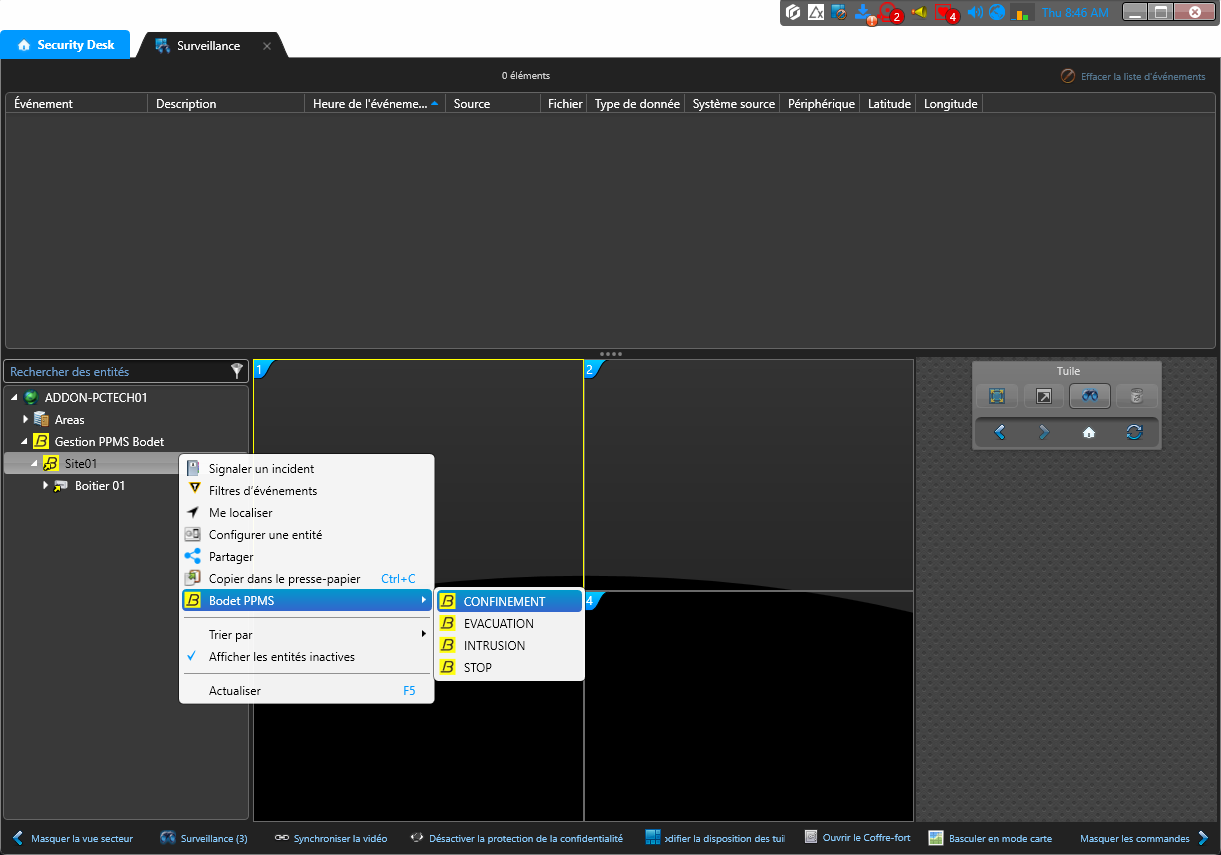

• Trigger any security alert remotely - right-click the Bodet site in Security Desk
• Identify the triggering button box instantly from its SNMP trap (name, IP, site)
• Monitor the site, its boxes and their events live, with a tile for each box in alert
• Handle active alarms - acknowledge, forward to another operator, snooze or investigate

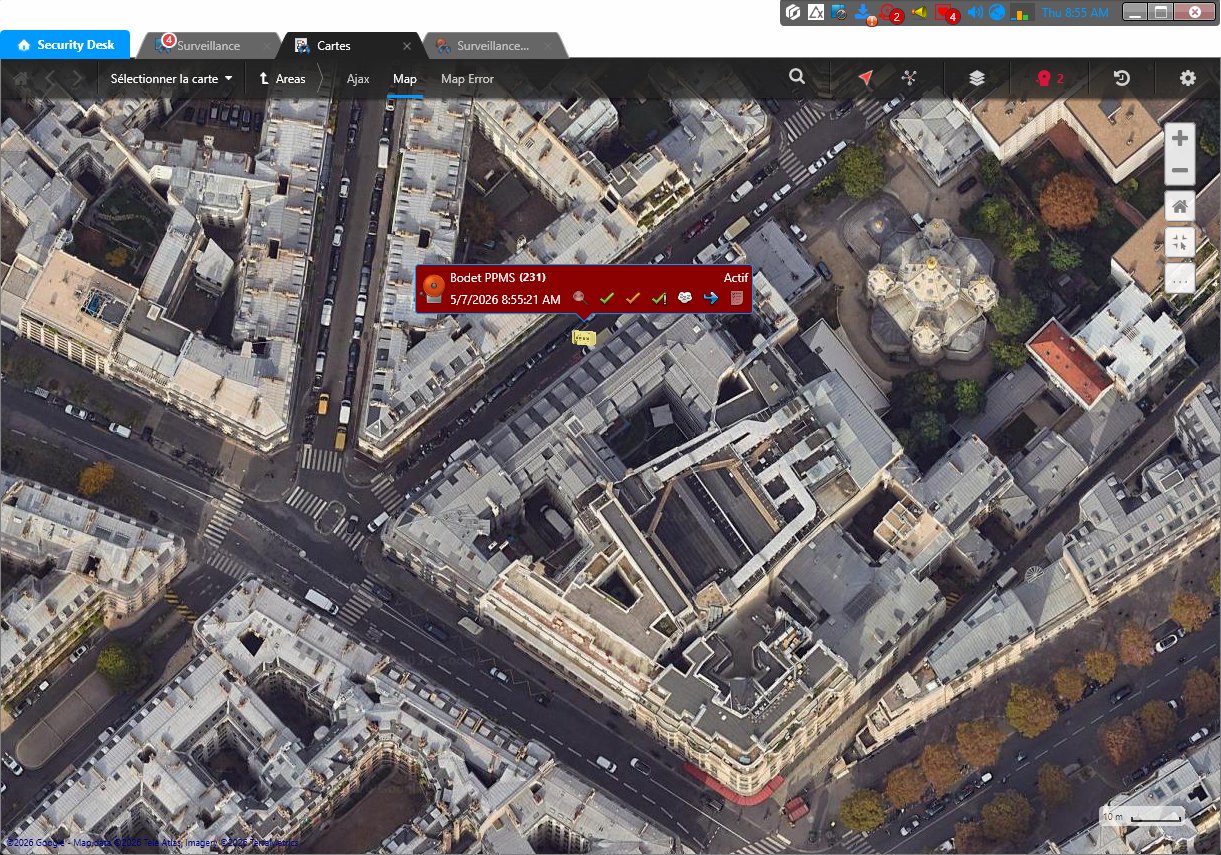

• See every active alarm geolocated automatically on the map
